Introduction
There is often a need for applications to bind a Grid View from an Extensible Markup Language
(XML) file that is widely used to communicate for cross-platform
applications. To learn more about XML please refer to the many articles
and books in this web site. Let us see the procedure for creating a XML
file so students can understand it.
Step 1:
Create the project as:
Summary
- "Start" - "All Programs" - "Microsoft Visual Studio 2010".
- "File" - "New Project" - "C#" - "Empty Project" (to avoid adding a master page).
- Give the project a name such as "BindGridfromxml" or another as you wish and specify the location.
- Then right-click on Solution Explorer - "Add New Item" - "Default.aspx" page.
- Drag and Drop one grid view to the Default.aspx page. Then the page will look such as follows.
Default.aspx
<%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<title></title>
</head>
<body bgcolor="silver">
<form id="form1" runat="server">
<asp:GridView ID="GridView1" runat="server" CellPadding="4" ForeColor="#333333" GridLines="None">
<AlternatingRowStyle BackColor="White" />
<EditRowStyle BackColor="#2461BF" />
<FooterStyle BackColor="#507CD1" Font-Bold="True" ForeColor="White" />
<HeaderStyle BackColor="#507CD1" Font-Bold="True" ForeColor="White" />
<PagerStyle BackColor="#2461BF" ForeColor="White" HorizontalAlign="Center" />
<RowStyle BackColor="#EFF3FB" />
<SelectedRowStyle BackColor="#D1DDF1" Font-Bold="True" ForeColor="#333333" />
<SortedAscendingCellStyle BackColor="#F5F7FB" />
<SortedAscendingHeaderStyle BackColor="#6D95E1" />
<SortedDescendingCellStyle BackColor="#E9EBEF" />
<SortedDescendingHeaderStyle BackColor="#4870BE" />
</asp:GridView>
</form>
</body>
</html>
Step 2:<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<title></title>
</head>
<body bgcolor="silver">
<form id="form1" runat="server">
<asp:GridView ID="GridView1" runat="server" CellPadding="4" ForeColor="#333333" GridLines="None">
<AlternatingRowStyle BackColor="White" />
<EditRowStyle BackColor="#2461BF" />
<FooterStyle BackColor="#507CD1" Font-Bold="True" ForeColor="White" />
<HeaderStyle BackColor="#507CD1" Font-Bold="True" ForeColor="White" />
<PagerStyle BackColor="#2461BF" ForeColor="White" HorizontalAlign="Center" />
<RowStyle BackColor="#EFF3FB" />
<SelectedRowStyle BackColor="#D1DDF1" Font-Bold="True" ForeColor="#333333" />
<SortedAscendingCellStyle BackColor="#F5F7FB" />
<SortedAscendingHeaderStyle BackColor="#6D95E1" />
<SortedDescendingCellStyle BackColor="#E9EBEF" />
<SortedDescendingHeaderStyle BackColor="#4870BE" />
</asp:GridView>
</form>
</body>
</html>

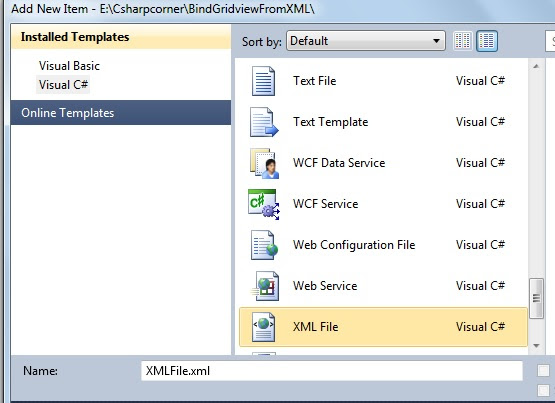

- Adding and creating XML file
After adding the XML file it wll look such as follows:
- <?xml version="1.0" encoding="utf-8" ?>
Step 3:
Now let us add some records to the XML file as in the following:
<?xml version="1.0" encoding="utf-8" ?> <Customer>
<Customerinfo>
<Name>Vithal Wadje</Name>
<city>Mumbai</city>
<Address>Sion, Mumbai</Address>
</Customerinfo>
<Customerinfo>
<Name>Sudhir Wadje</Name>
<city>Latur</city>
<Address>Latur</Address>
</Customerinfo>
<Customerinfo>
<Name>U D</Name>
<city>Mumbai</city>
<Address>DN,Road Mumbai</Address>
</Customerinfo>
<Customerinfo>
<Name>Anil Kumar</Name>
<city>Delhi</city> z
<Address>Nehru House</Address>
</Customerinfo> </Customer>
<?xml version="1.0" encoding="utf-8" ?> <Customer>
<Customerinfo>
<Name>Vithal Wadje</Name>
<city>Mumbai</city>
<Address>Sion, Mumbai</Address>
</Customerinfo>
<Customerinfo>
<Name>Sudhir Wadje</Name>
<city>Latur</city>
<Address>Latur</Address>
</Customerinfo>
<Customerinfo>
<Name>U D</Name>
<city>Mumbai</city>
<Address>DN,Road Mumbai</Address>
</Customerinfo>
<Customerinfo>
<Name>Anil Kumar</Name>
<city>Delhi</city> z
<Address>Nehru House</Address>
</Customerinfo> </Customer>
In
the preceding sample code the Custmorinfo tag represents the table name
in the data table and Name, City and Address represents the column
name. When you want to add records then you need to add a row within the
Customerinfo tag every time.

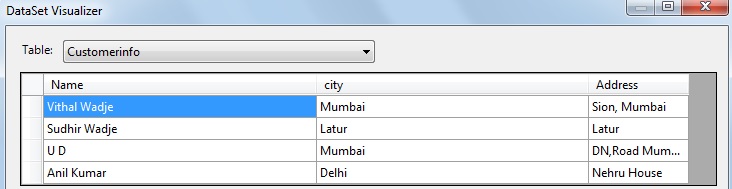

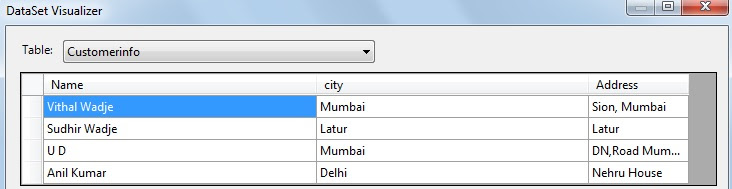

Let us see the preceding XML file in the DataSet using the DataSet Visualizer as in the following:
From
the preceding example it's clear that the Customerinfo tag represents
the table name in the data table and that Name, City and Address
represents the column name.
Step 4:
Now let us add the code into default.aspx.cs for the Page Load event to bind the Grid view as in the following:
Default.aspx.cs
using System;
using System.Data; using System.Data.SqlClient;
public partial class _Default : System.Web.UI.Page
{ DataSet ds = new DataSet(); protected void Page_Load(object sender, EventArgs e)
{
ds.ReadXml(Server.MapPath("~/Customer.xml"));
GridView1.DataSource = ds;
GridView1.DataBind();
}
}
We are now done with the code, now run the application and the output will be as follows.
using System;
using System.Data; using System.Data.SqlClient;
public partial class _Default : System.Web.UI.Page
{ DataSet ds = new DataSet(); protected void Page_Load(object sender, EventArgs e)
{
ds.ReadXml(Server.MapPath("~/Customer.xml"));
GridView1.DataSource = ds;
GridView1.DataBind();
}
}
We are now done with the code, now run the application and the output will be as follows.
Summary
I hope this article is useful for all readers, if you have any suggestion then please contact me including beginners also.
